Your current position: home page > Product Center > 6 inch Mono Solar Cells with 3 Bus Bars
6 inch Mono Solar Cells with 3 Bus Bars
- ¡¼Name¡½ 6 inch Mono Solar Cells with 3 Bus Bars
- ¡¼Category¡½ Solar Cells
- ¡¼Model¡½ DH-S-3BB
- ¡¼Brand¡½ DH-SOLAR
- ¡¼Original¡½ Taiwan
- ¡¼Packing¡½ CARTON+FOAM
- Basic parameters
Please click here to download the product specifications.Physical properties
- Size
156mm*156mm+/-0.5mm - Thickness
200um+/-30um

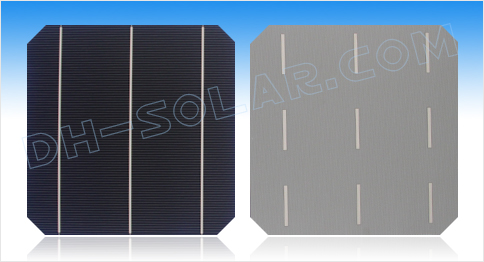

Front£ºThree 1.5 mm wide bus bars(silver)with distance 39mm, alkaline texturized sureface with dark blue silicon nitride AR coating.
Back£º2.7 mm wide silver/aluminum soldering pads, aluminum local back surface field.
Performance and quality
Performance and Quality:
Industry-Leading Efficiency on P-type Monocrystalline and Multicrystalline Silicon Solar cell
Robust Reliability Performance for Potential Mudule Benefit Beyond 25 years
Compatible with Present Module Manufactureing Process
PID Resistant Confirmed by All Major Customers and testing Labs
100% In-line Optical and Electrical Inspection
Electrical Characteristics:
| Efficiency Class | 1840 | 1860 | 1880 | 1900 | 1920 | 1940 | 1960 | 1980 |
| Efficiency(%) | 18.4 | 18.6 | 18.8 | 19 | 19.2 | 19.4 | 19.6 | 19.8 |
| Pmax (w) | 4.41 | 4.46 | 4.51 | 4.56 | 4.61 | 4.66 | 4.71 | 4.76 |
| Voc (V) | 0.628 | 0.63 | 0.632 | 0.634 | 0.636 | 0.638 | 0.64 | 0.642 |
| Isc (A) | 9.03 | 9.06 | 9.09 | 9.12 | 9.15 | 9.18 | 9.21 | 9.24 |
| Vmax (V) | 0.526 | 0.528 | 0.53 | 0.532 | 0.534 | 0.536 | 0.538 | 0.54 |
| Imax (A) | 8.39 | 8.45 | 8.51 | 8.57 | 8.63 | 8.69 | 8.75 | 8.81 |
