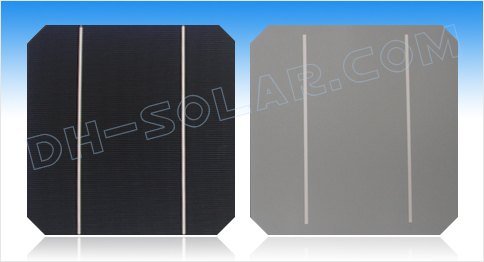

6 inch Mono Solar Cells with 2 Bus Bars
6 inch Mono Solar Cells with 2 Bus Bars
      Basic parameters
  • ¡¼Name¡½         6 inch Mono Solar Cells with 2 Bus Bars
  • ¡¼Category¡½    Solar Cells
  • ¡¼Model¡½        DH-S-2BB
  • ¡¼Brand¡½         DH-SOLAR
  • ¡¼Original¡½    Taiwan
  • ¡¼Packing¡½      Carton + foam
        • Please click here to download the product specifications.
    Physical properties
    • Size
      156mm*156mm+/-0.5mm
    • Thickness
      200um+/-30um
    • Efficiency
      18%-20%
    Front£ºTwo 1.8 mm wide bus bars(silver)with distance 75mm,alkaline texturized sureface with dark blue silicon nitride AR coating.
    Back£º3 mm wide silver/aluminum soldering pads, aluminum local back surface field
    Performance and quality

    Performance and Quality

    Industry-Leading Efficiency on P-type Monocrystalline and Multicrystalline Silicon Solar cell

    Robust Reliability Performance for Potential Mudule Benefit Beyond 25 years

    Compatible with Present Module Manufactureing Process

    PID Resistant Confirmed by All Major Customers and testing Labs

    100% In-line Optical and Electrical Inspection

    Electrical Characteristics

    Efficiency Class18401860188019001920194019601980
    Efficiency(%)18.418.618.81919.219.419.619.8
    Pmax      (w)4.414.464.514.564.614.664.714.76
    Voc       (V)0.6280.630.6320.6340.6360.6370.6390.641
    Isc       (A)9.039.069.099.129.159.189.219.24
    Vmax      (V)0.5260.5280.5310.5330.5350.5370.5390.541
    Imax      (A)8.398.458.518.578.628.688.748.79
